Custom Hardware without starting from Scratch¶
Every embedded project is different. That's why LoopCheck is based on an adaptive hardware platform.
Instead of developing a completely new test system for every use case, we customize an existing, proven platform specifically for your application.
This enables¶
- Faster deployment
- Lower engineering effort
- Lower project risk
- Proven hardware architecture
- Easy future extensions
Hardware Examples, customized for different Applications¶
LoopCheck is available in many hardware configurations depending on your needs. Every platform is configured specifically for the target device.
-
Docking-Shield Connect
High-density screw-terminal I/O for wiring the device under test directly.
-

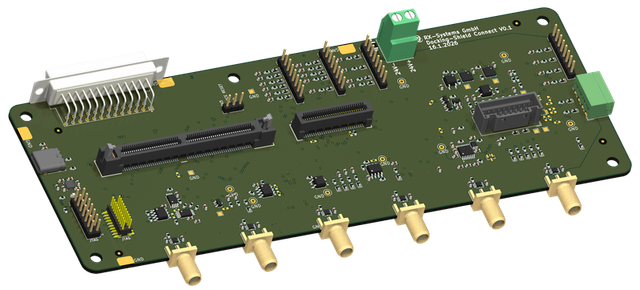

Analog / Coaxial Frontend
BNC-style coaxial inputs and a D-Sub connector for precise analog signals.
-

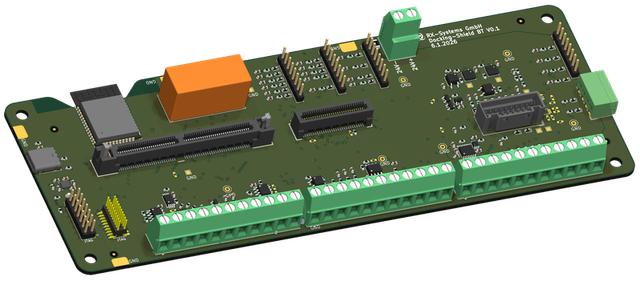

Docking-Shield RT
Real-time variant with power stage and spring-terminal I/O.
-

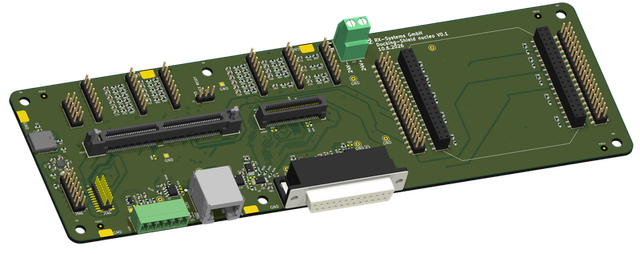

Application-specific Shield
Customer-specific connector layout adapted to the target device.
Typical interfaces¶
| Category | Interfaces |
|---|---|
| Automotive bus | CAN / CAN FD |
| Networking | Ethernet |
| Serial | UART, RS485 / RS422 |
| Analog | Analog inputs / outputs |
| Digital | Digital I/O, PWM, SPI, I²C |
| Power | Power outputs |
| Simulation | Sensor simulation |
| Application-specific | Custom interfaces |
